Carbon Dioxide

Carbon Dioxide
Carbon Dioxide
Characteristics

Colourless, liquefied, high pressure gas, slightly acidic.

Grade
  • Technical Grade ≥ 99.99%
Have a question about this product? Click here

Carbon dioxide gas is formed from the combination of two elements: carbon and oxygen. It is produced from the combustion of coal or hydrocarbons, the fermentation of liquids and the breathing of humans and animals.

Industrial Use
  • Carbon dioxide is used in chemistry for controlling reactor temperatures.
  • Carbon Dioxide is typically used for environment protection.
  • It is used for red fume suppression during scrap and carbon charging, for nitrogen pick-up reduction during EAF tapping and for bottom stirring.
  • In the non ferrous metallurgy, carbon dioxide is used for fume suppression during ladle transfer of matte (Cu/Ni production) or bullion (Zn/Pb production).
  • Small amount of liquid CO2 can be used in recycling of waters from Acid Mine Drainage (AMD).

Physical and Chemical Properties:
Asphyxiant Yes
Atmospheric % Trace
Boiling Point -78.5(s) °C
Category Inert Gas
Chemical Abstracts Service Number 124-38-9
Chemical Name CO2
Critical Temperature 30 °C
Flammability Range Non Flammable
Melting Point -56.6 °C
Molecular Weight 44.01 g/mol
Phase Gas / Liquid
Relative Density, Gas 1.52 (air = 1)
Relative Density, Liquid 1.03 (water = 1)
Solubility [mg/l] in Water 2000 mg/l
Toxic No - Simple Asphyxiant
UN Number 1013 - Gas, 2187 - Liquid
Vapour Pressure 57.3Bar
Cylinder Icon
cylinders

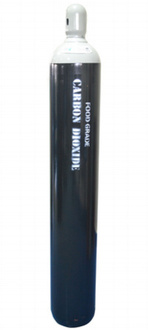

  • 5Kg, 20Kg, 25Kg, 30Kg and 45Kg
  • In Racks - 1x16, 1x30 and 1x60
Tanker Icon
Bulk
  • IMO7 ISO Tanks (20000 Liters)
Dewars Icon
Dewars
  • 240 Liters
